Compact CX Series

Lightweight and Compact - The New Generation

HAWK COMPACT CX Series is the ideal choice where factory space is limited. With a standard print area of up to 46cm x 50cm (18” x 20”) the Compact range offers the perfect combination of small footprint without compromising on print area or features.

CX08

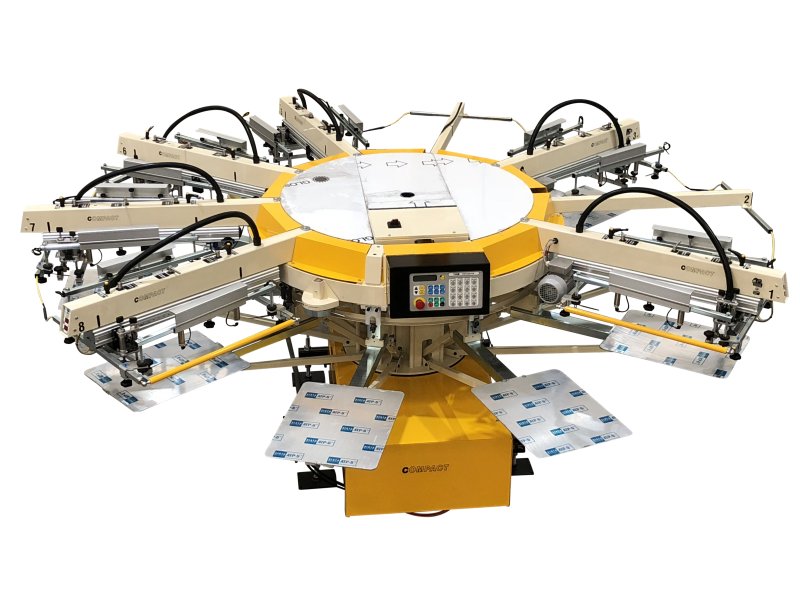

Compact CX08

Specifications

• Colours: 8
• Stations: 10
• Indexer: Electric
• Print Heads: Electric
• Max Outside Frame Size: 610mm X 762mm (24" X 30")
• Max Print Area: 457mm X 508mm (18" X 20")
• Diameter: 3956mm (12' 11")
• Weight: 1300Kg (2866lb)
• Standard Pallet Size: 470mm X 610mm (18.5" X 24")
• Standard Squeegees & Flood Bars: 460mm
• Standard Squeegee Rubbers: 65 duro
• Electrical Requirements 220v/3Ph: 13amps 50/60hz
• Electrical Requirements 380-415v/3Ph: 15amps 50/60hz
• Compressed Air Requirement: 3.5 l/sec 7.5 cfm @ 100 psi
• Micro Reg Adjustment: Standard
• AC Electric Rotation & Print Heads: Standard
• Central Off Contact: Standard
• Roto Print Program: Standard
• Squeegee Cylinders Knurled Knobs: Standard
• Squeegee Pressure Regulators: Standard
• Pneumatic Screen Clamping: Standard
• Multi-Functional Foot Switch Pedal: Standard
• Individual Head Off Contact: Standard
• Front, Centre & Rear Micro Registration: Standard
• Calibrated Individual Off-Contact: Optional

Download Brochure [PDF]
